JRUF-C-75

Membrane fiber

 PVDF

Membrane housing

ABS

Potting Material

Epoxy resin

Average Pore Size (μm)

0.03

Pure Water Flux (L/m²·h)

≥900 L/m²·h

Fiber Inner / Outer Diameter (mm)

0.7/ 1.3

Fiber Tensile Strength

≥80N

Module type

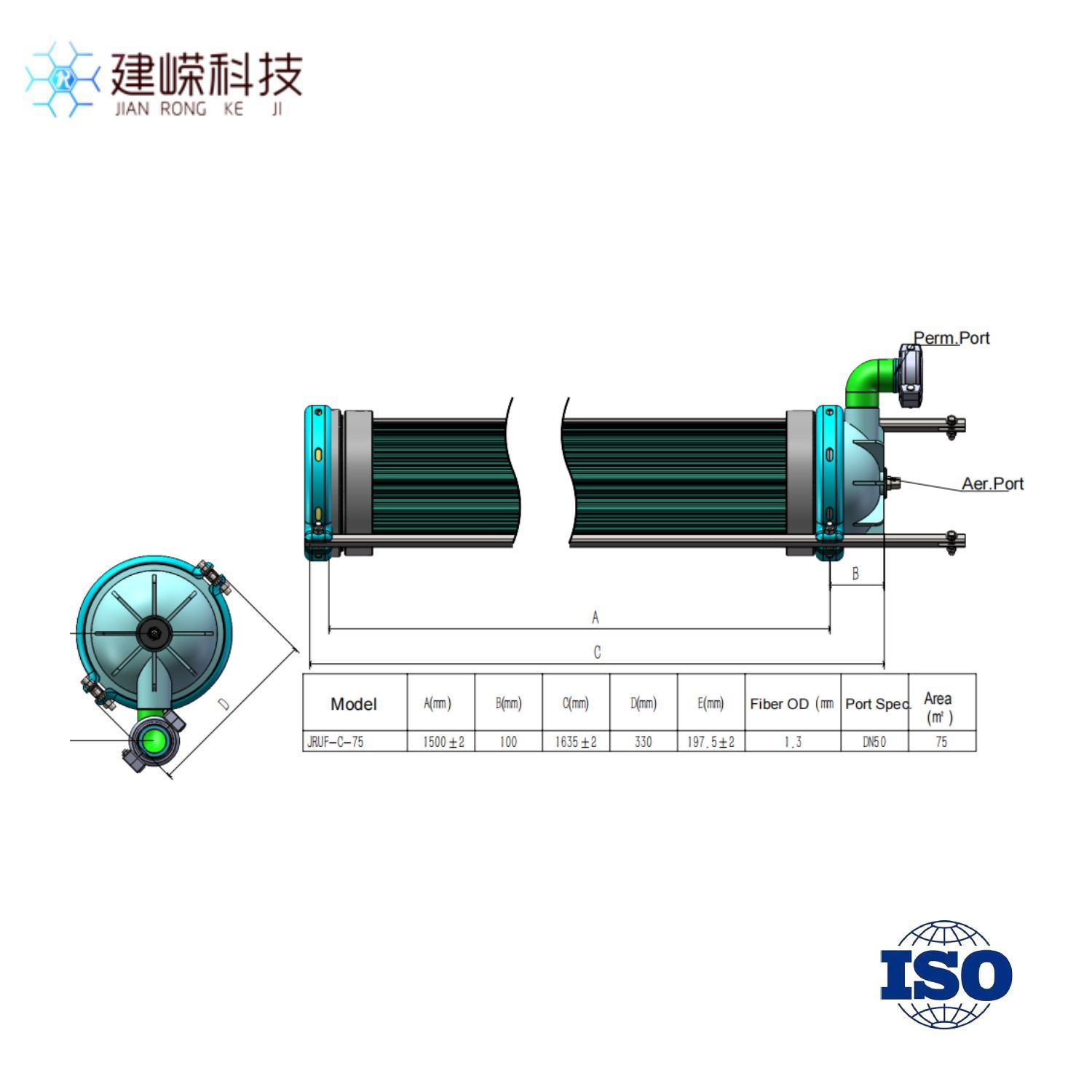

Dimensions(MM)

Membrane area(m²)

Dry weight (kg)

Connection

Hollow Fiber Structure

JRUF-C-75

Ø330x1635

75

18.55

DN50 grooved coupling

Internal Reinforcement Design

Filtration Mode

Outside-in, cross-flow circulation

Temperature (°C)

5 – 40

Operating pH

2 – 11

Chlorine

5000 ppm

Operating Flux (L/m²·h)

25 – 35

Backwash Flux (L/m²·h)

50 – 70

Chemical cleaning pH

1 – 14

Permeate pressure

-50kPa

Treated Water Turbidity (NTU)

≤ 0.1

SDI₁₅ of Permeate

3.0 / 5.0(raw water purification)

E. coli

Not detected

Total bacteria count

 Not detected
