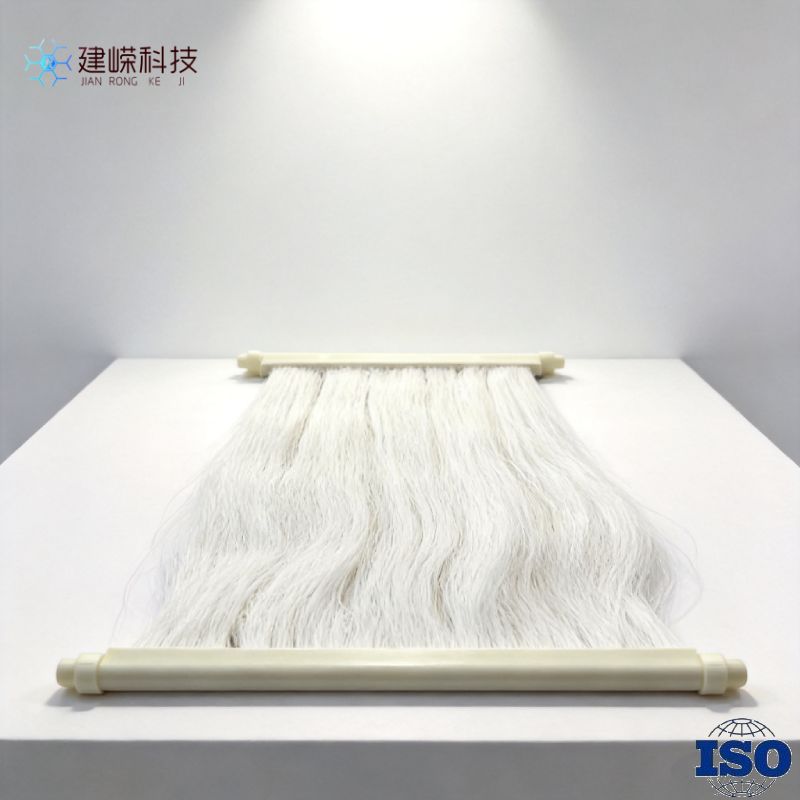

JRUF-MBR-15

Module type	Dimensions(MM)	Membrane area(m²)	Dry weight (kg)	Connection	Hollow Fiber Structure

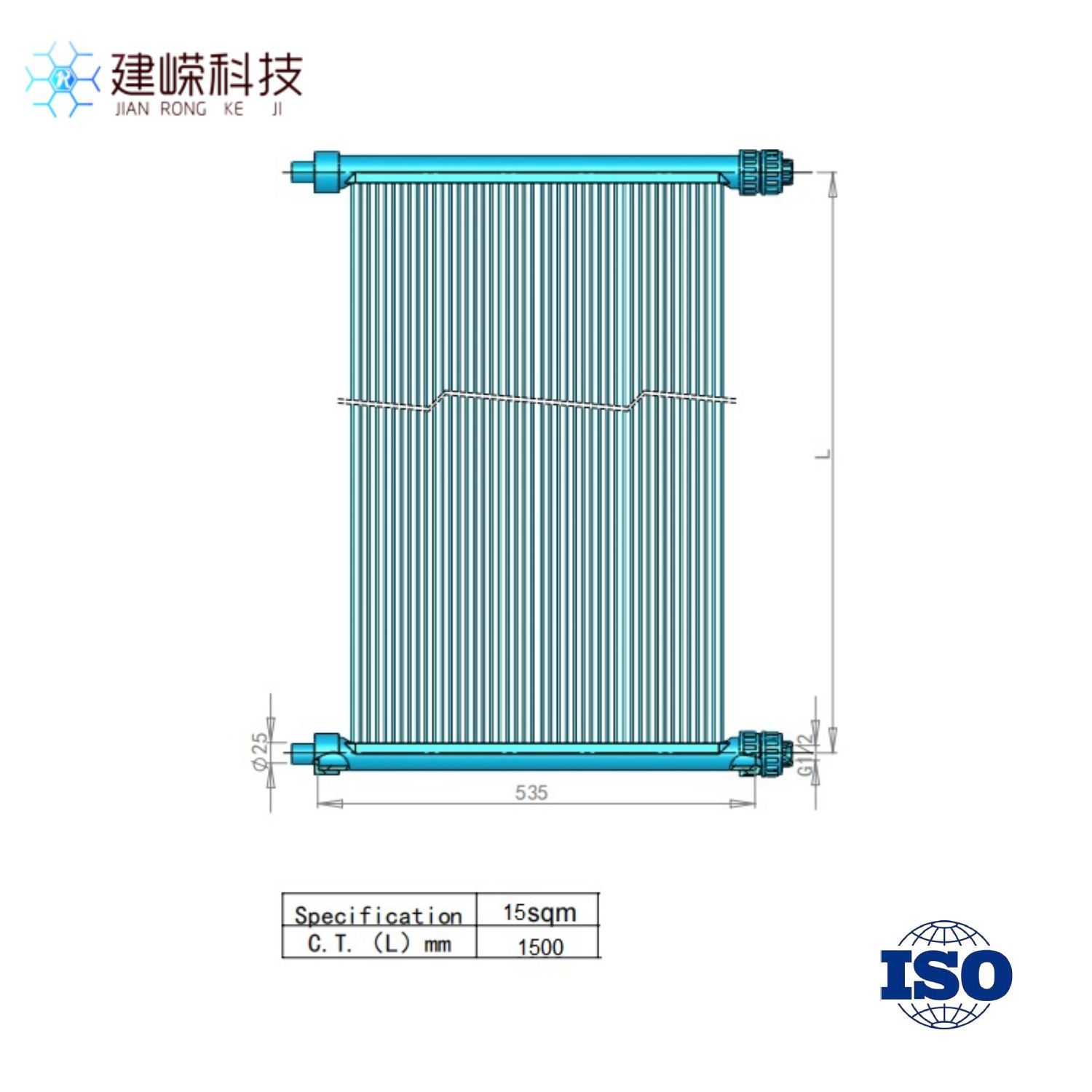

JRUF-MBR-15	535X46X1500	15	7	DN15 internal thread / DN15 socket	Internal Reinforcement Design

Hollow Fiber Performance
Average Pore Size (μm)	0.03microns
Pure Water Permeability	≥800 L/m²·h @ 0.1 MPa, 25°C
Fiber Tensile Strength	≥160 N
Fiber Inner / Outer Diameter (mm)	1.0 / 2.0

Typical Filtration Performance
Permeate turbidity	≤ 0.5 NTU
SDI₁₅	≤ 5.0
E. coli	Not detected
Total bacteria count	≤ 3 CFU/mLv

Customization Guidelines
Customizable design available. Maximum length	2m, total area not exceeding 35 ㎡
