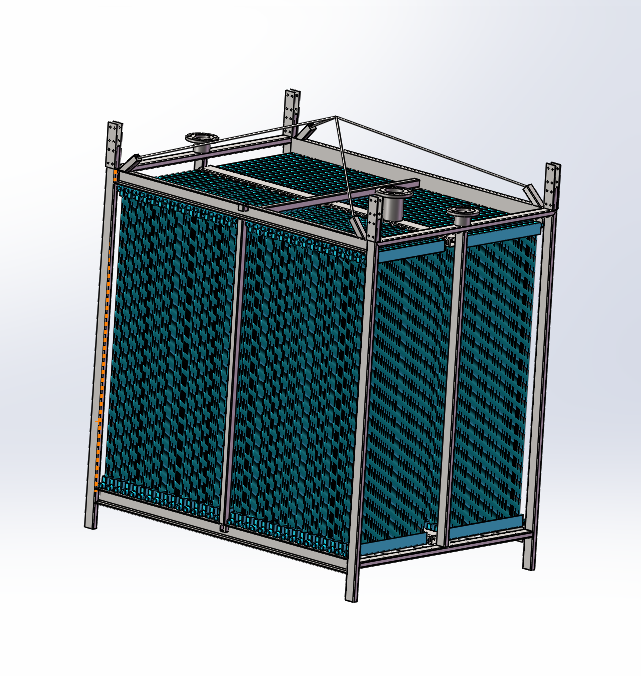

JR-MBR-20-S80

Customizable design available.

JR— MBR — MA — S MC

MA: Membrane area ≤ 35 ㎡

S:Double-row membrane frame

MC: Number of membrane curtains ≤ 80 pcs

Model	Total Membrane Area (m²)	Permeate Flow Rate (m³/d)	Recommended Operating Capacity (m³/d)	Dimensions (L × W × H, mm)	Inlet / Outlet Connection	Rack Weight (approx., kg)	Module Dry Weight (approx., kg)	Operating Wet Weight (approx., kg)
JR-MBR-20-S80	1600	360-520	450	350014002250	DN50/DN50PN10	238	800	2340

Typical Filtration Performance
Permeate turbidity	≤ 0.5 NTU
SDI₁₅	≤ 5.0
E. coli	Not detected
Total bacteria count	≤ 3 CFU/mL
