JRUF-0860

Membrane fiber

 PVDF

Membrane housing

ABS

Potting Material

Epoxy resin

Average Pore Size (μm)

0.03

Pure Water Flux (L/m²·h)

≥900 L/m²·h

Fiber Inner / Outer Diameter (mm)

0.7 / 1.3

Fiber Tensile Strength

≥80N

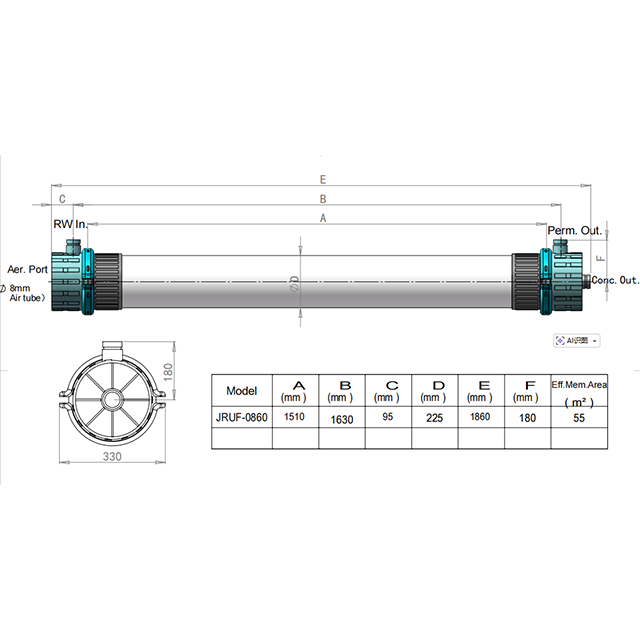

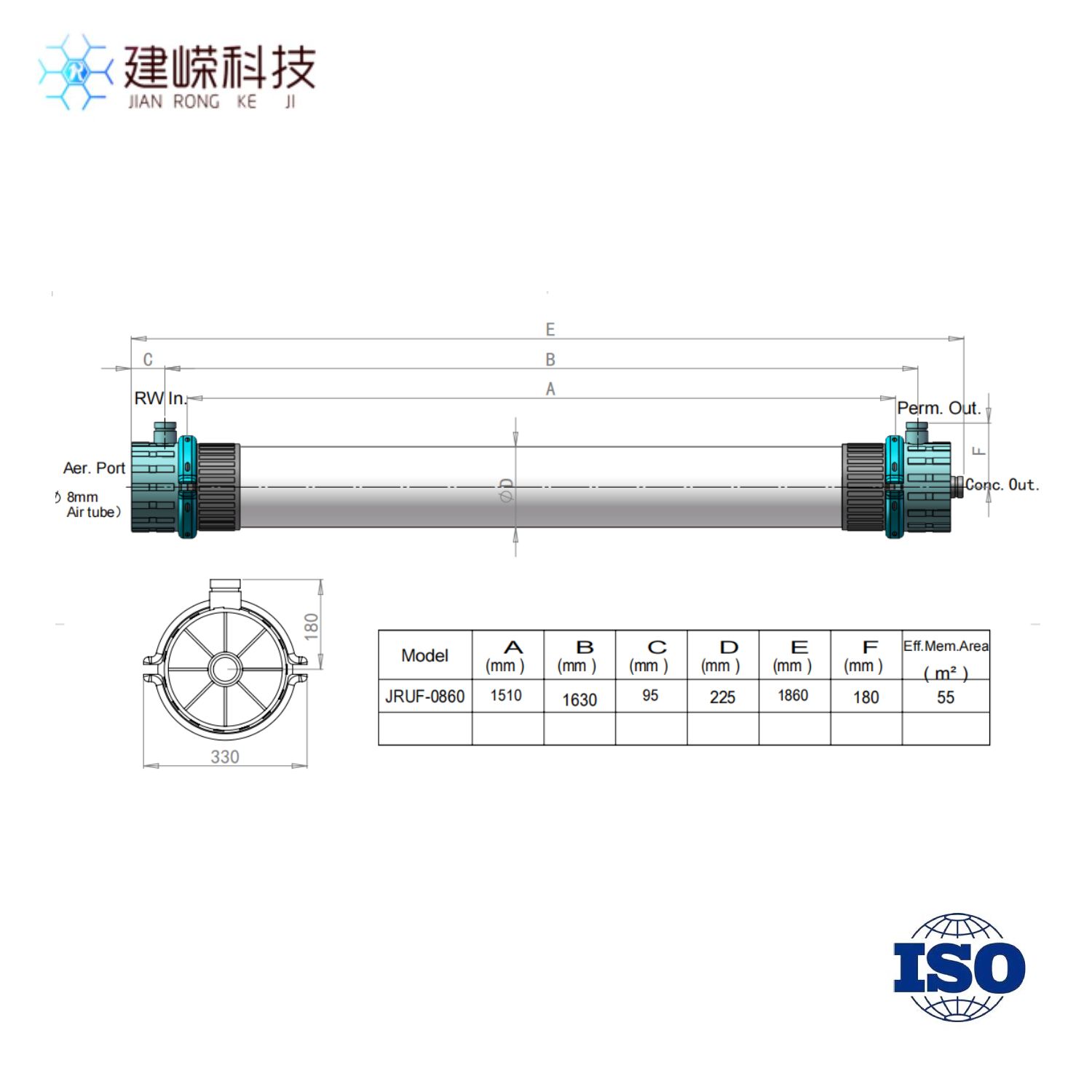

Module type

Dimensions(MM)

Membrane area(m²)

Dry weight (kg)

Connection

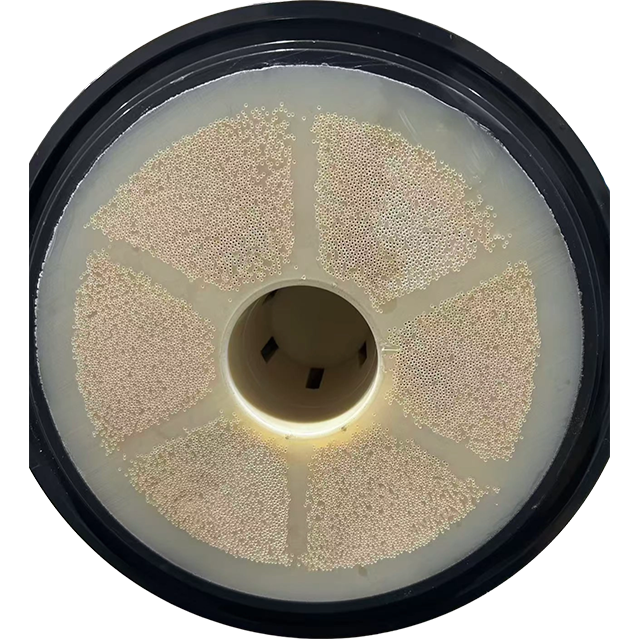

Hollow Fiber Structure

JRUF-0860

Ø225x1860

55

30

DN50 grooved coupling

Internal Reinforcement Design

Filtration Mode

Outside-in, cross-flow circulation

Temperature (°C)

5 – 40

Operating pH

2 – 11

Chlorine

5000 ppm

Operating Flux (L/m²·h)

40 – 120

Backwash Flux (L/m²·h)

80 – 180

Chemical cleaning pH

1 – 14

Maximum Inlet Pressure (MPa)

0.4

Maximum Operating TMP (MPa)

0.24

Treated Water Turbidity (NTU)

≤ 0.1

SDI₁₅ of Permeate

3.0 / 5.0(raw water purification)

E. coli

Not detected

Total bacteria count

 Not detected
