Customizable design available.

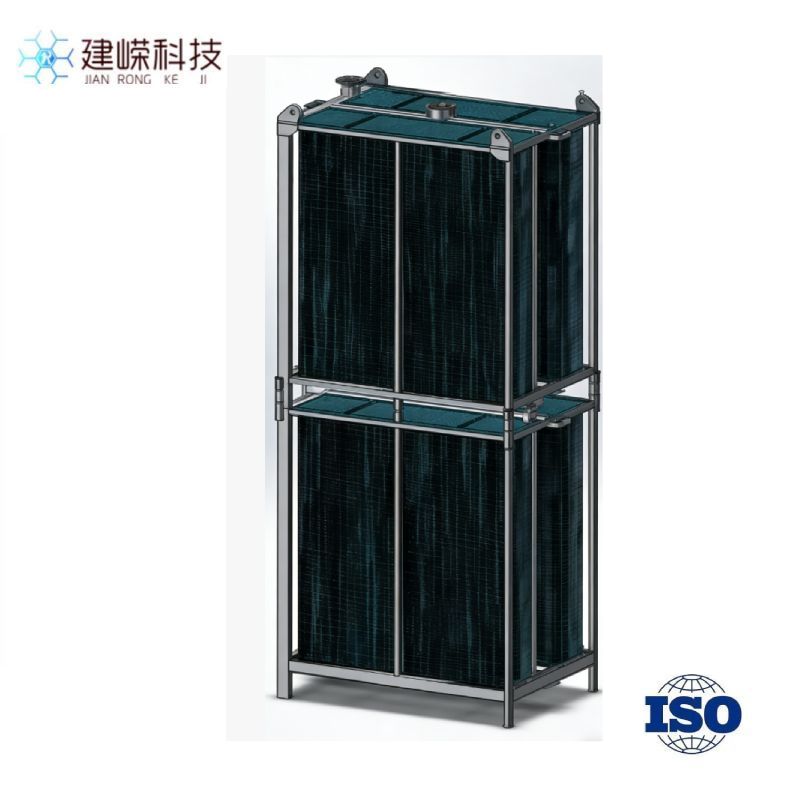

JR— MBR — MA — SS MC
MA: Membrane area ≤ 35 ㎡
SS:Double-row，Double-layer membrane frame
MC: Number of membrane curtains ≤ 80 pcs
Model | Total Membrane Area (m²) | Permeate Flow Rate (m³/d) | Recommended Operating Capacity (m³/d) | Dimensions (L × W × H, mm) | Inlet / Outlet Connection | Rack Weight (approx., kg) | Module Dry Weight (approx., kg) | Operating Wet Weight (approx., kg) |
JR-MBR-20-SS100 | 2000 | 320-760 | 600 | 2100*1450*4550 | DN50/DN50PN10 | 475 | 1175 | 3040 |
Product Material | |
|---|---|
Membrane fiber | PVDF |
Membrane housing | ABS |
Potting Material | Epoxy resin |
Operating conditions | |
|---|---|
Temperature (°C) | 5 – 40 |
Operating pH | 2 – 11 |
Chlorine | 5000 ppm |
Operating flux | ≤ 25 LMH |
Backwash flux | ≥ 30 LMH |
Chemical cleaning pH | 1 – 14 |
Operating TMP | 0.05 MPa |
Typical Filtration Performance | |
|---|---|
Permeate turbidity | ≤ 0.5 NTU |
SDI₁₅ | ≤ 5.0 |
E. coli | Not detected |
Total bacteria count | ≤ 3 CFU/mL |
