JRL-MBR-35

Module type

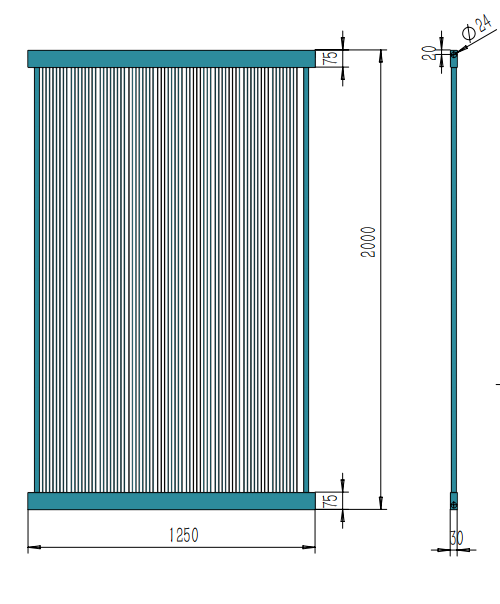

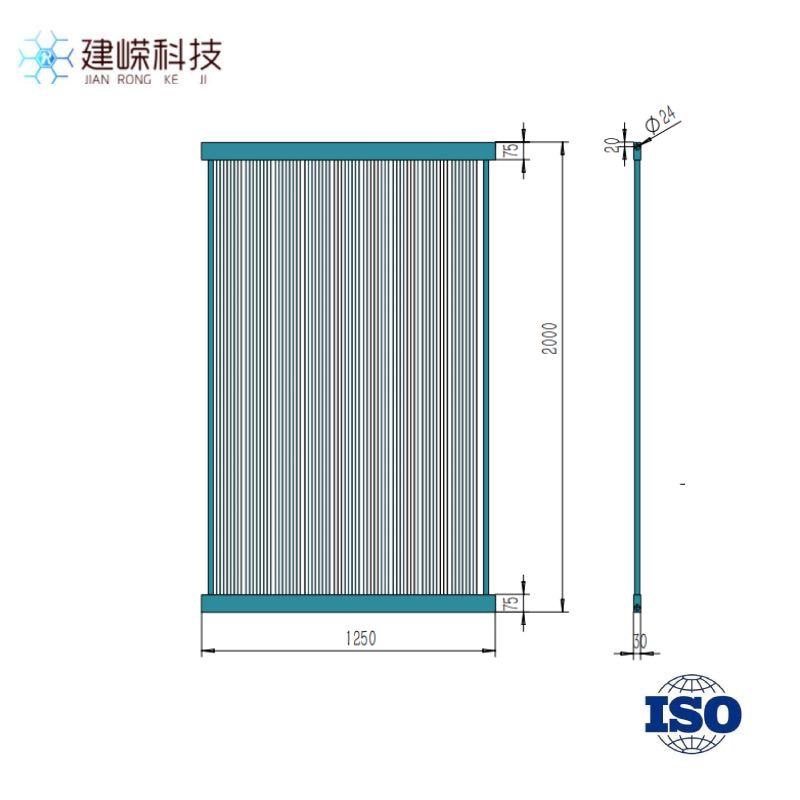

Dimensions(MM)

Membrane area(m²)

Dry weight (kg)

Connection

Hollow Fiber Structure

JRL-MBR-35

1250X30X2000

35

15.9

DN15 internal thread / DN15 socket

Internal Reinforcement Design

Membrane fiber

 PVDF

Membrane housing

ABS

Potting Material

Epoxy resin

Average Pore Size (μm)

0.03microns

Pure Water Permeability

≥800 L/m²·h @ 0.1 MPa, 25°C

Fiber Tensile Strength

≥160 N

Fiber Inner / Outer Diameter (mm)

1.0 / 2.0

Temperature (°C)

5 – 40

Operating pH

2 – 11

Chlorine

5000 ppm

Operating flux

≤ 25 LMH

Backwash flux

≥ 30 LMH

Chemical cleaning pH

 1 – 14

Operating TMP

0.05 MPa

Permeate turbidity

≤ 0.5 NTU

SDI₁₅

≤ 5.0

E. coli

Not detected

Total bacteria count

≤ 3 CFU/mL

Customizable design available. Maximum length

2m, total area not exceeding 35 ㎡
